PC-SPL Splitter Module

PC-SPL splitter modules are designed to provide an easy, plug-in method of splitting Plug-N-Go system circuits. Splitter modules split single-, dual-, or three-circuit sources of switched or unswitched power into two output connectors. Splitter modules can be installed at any connection point in the Plug-N-Go system. Our modular wiring components are keyed & color coded for easy installation.

Features

Allows easy, plug-in switched or unswitched circuit splitting at any connection point
Full 20-amp rating
Single, dual, and three-circuit models
#12 AWG copper conductors standard
#10 AWG copper conductors optional
600V, 90º C insulation
Dead-front construction for safety
Connectors are color-coded for easy voltage identification
Keyed components ensure proper connection, function, and safety
Positive locking clips prevent accidental disconnection
Approved for installation in air handling spaces other than ducts and plenums
UL-listed

Description

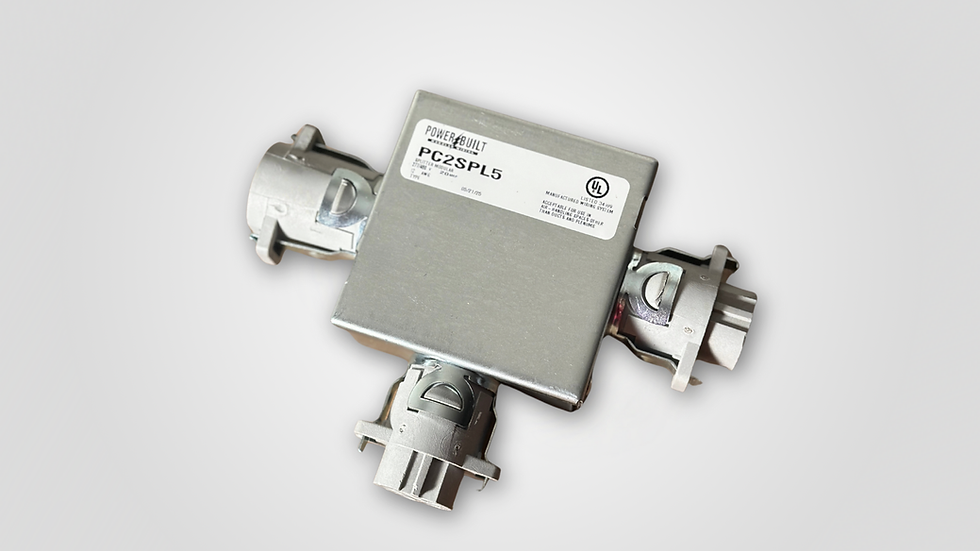

Splitter Modules consist of a metallic enclosure providing an input connector and two output connectors. They are factory-prewired with #12 AWG copper conductors, 600V, 105°C insulation, and rated at 20 amps. Splitter Module connectors feature recessed electrical terminals, resulting in a dead-front design for added safety. All connectors are color-coded for easy voltage identification and are keyed to allow mating connections only with components of the same voltage. Secure connections are assured by locking clips on the component rear cup assemblies which prevent accidental disconnection.

Function

Plug-N-Go Switch Modules accommodate all single- or multi-circuit, switched or unswitched applications for which the system is designed. The input connector accepts single-, dual-, or three-circuit, switched or unswitched power and internally divides the circuit into two parallel output connectors. Splitter Modules plug into the Plug-N-Go system at any connection point between components.

Color Coding

Connector Color → Voltage

Gray → 277/480 and 480VAC

Brown →120/208, 208 and 240VAC

Purple → Dual Neutral 120/208VAC

Khaki → Dual Neutral 277/480VAC

Green → Isolated Ground 120/208VAC
